fiber optic loop
dense winding erbium fiber ring for EDFA module fiber signal delay.
- working and storage conditions:
-
parameters
Unit
Index
Remarks
working temperature
°C
-5 to 65
Working humidity
%RH
5-95
Storage Temperature
°C
-40-85
- performance indicators:
|
parameters |
Unit |
Index |
fiber type |
Remarks |
|
Fiber Length |
m |
10±0.10 X4 9.5±0.10 X4 13±0.10 X4 13.3±0.10 X4 |
OFS LRL250um Abs@1530is about30.74dB/m |
10m,13mBoth ends of the fiber section are0.4m~0.5m 9.5mand13.3mfiber segment, the fiber length at both ends are respectively0.4m~0.5mand1.2±0.1m |

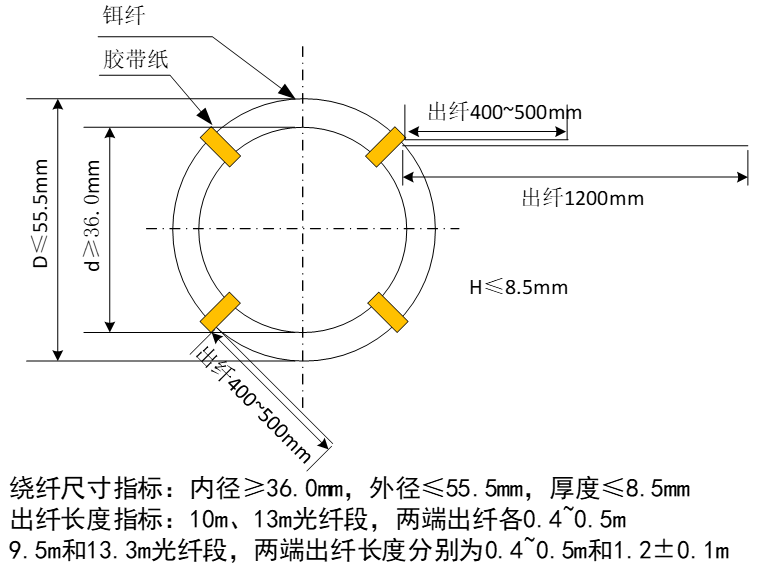

- structure size and port definition:
optical fiber is fixed with aluminum high temperature tape
winding fiber: inner diameter ≥36.0mmouter diameter ≤55.5mm, thickness ≤8.5mm
